Low Noise Drainage Pipes

ALMAPLAST 3S pipes are produced from polypropylene (PP) polymers with the addition of the mineral filler (MF). The primary application of the pipe is drainage of waste water for residential and industrial use.

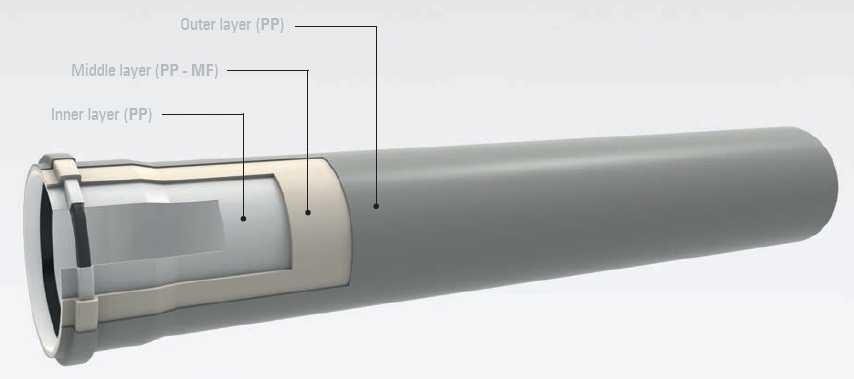

Pipes are manufactured with integrated connection socket, have compact multilayered wall and come with a corresponding connection seal. The pipe wall is made from three layers, the outer and inner layer made of pure PP and middle layer with the addition of the mineral filler. The outer layer of the pipe is grey RAL 7037, and the inner layer is white RAL 9003.

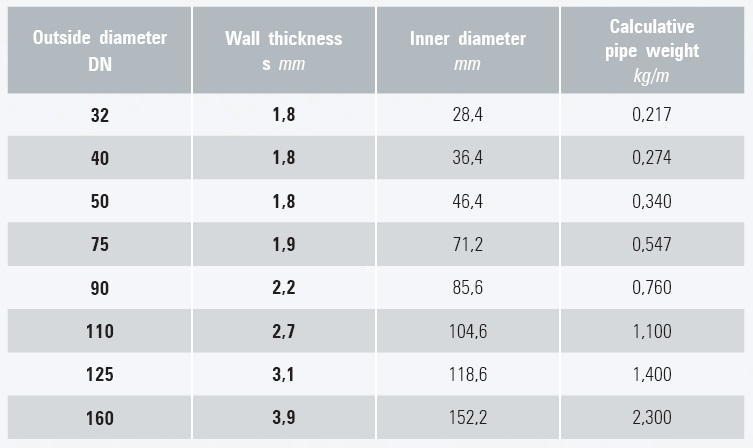

Wall thickness of ALMAPLAST 3S three-layer pipes is the same as the wall thickness of ALMAPLAST ST single pipe. While discharging media through the pipe, although they have the same wall thickness, ALMAPLAST 3S pipes emit less noise than ALMAPLAST ST pipes. This is because the middle layer is produced with mineral filler that has good sound absorption, and also provides a larger circumferential rigidity than the classical single-layer PP pipes.

ALMAPLAST 3S pipes comply with the HRN EN 1451-1 which specifies the required mechanical and physical properties of pipes and fittings manufactured from PP in the field of drainage and waste water within the building construction.

Pipes are supplied with associated fittings in the appropriate dimensions.

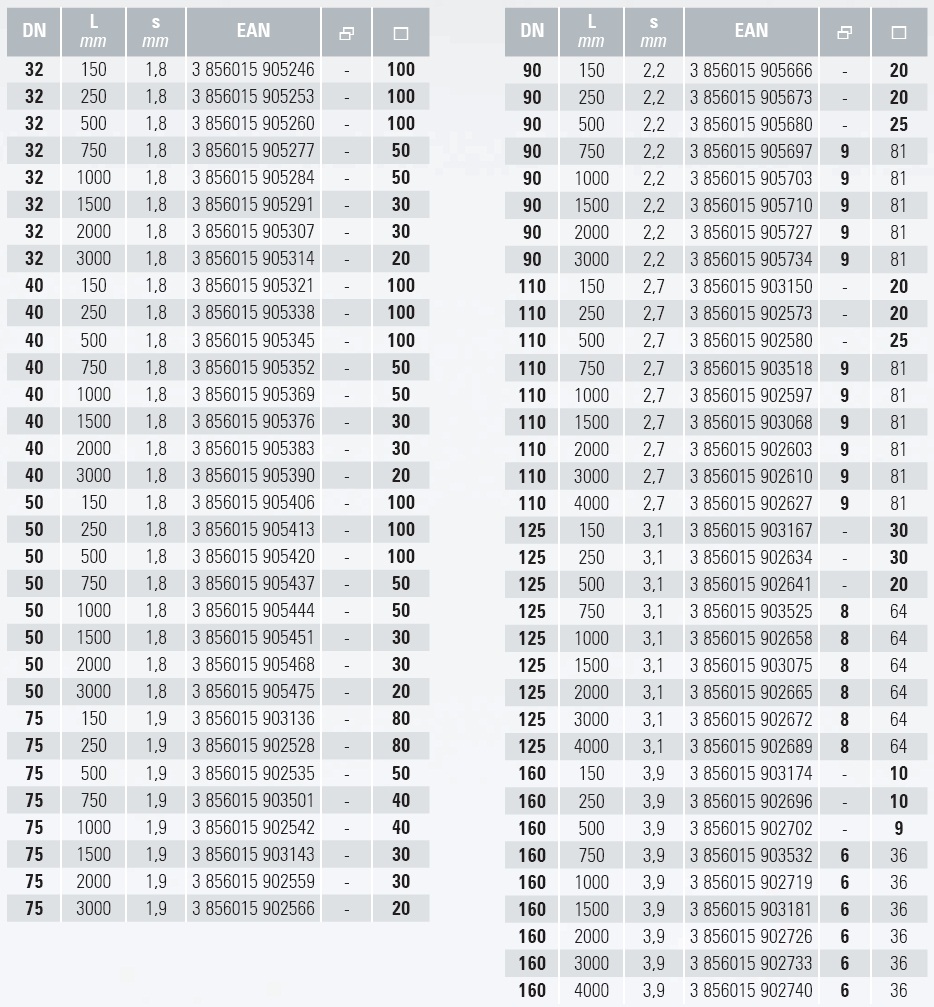

Art. 101 / 1                                                                                                                                 PKEM

THREE LAYER PIPE WITH SOCKET with seal

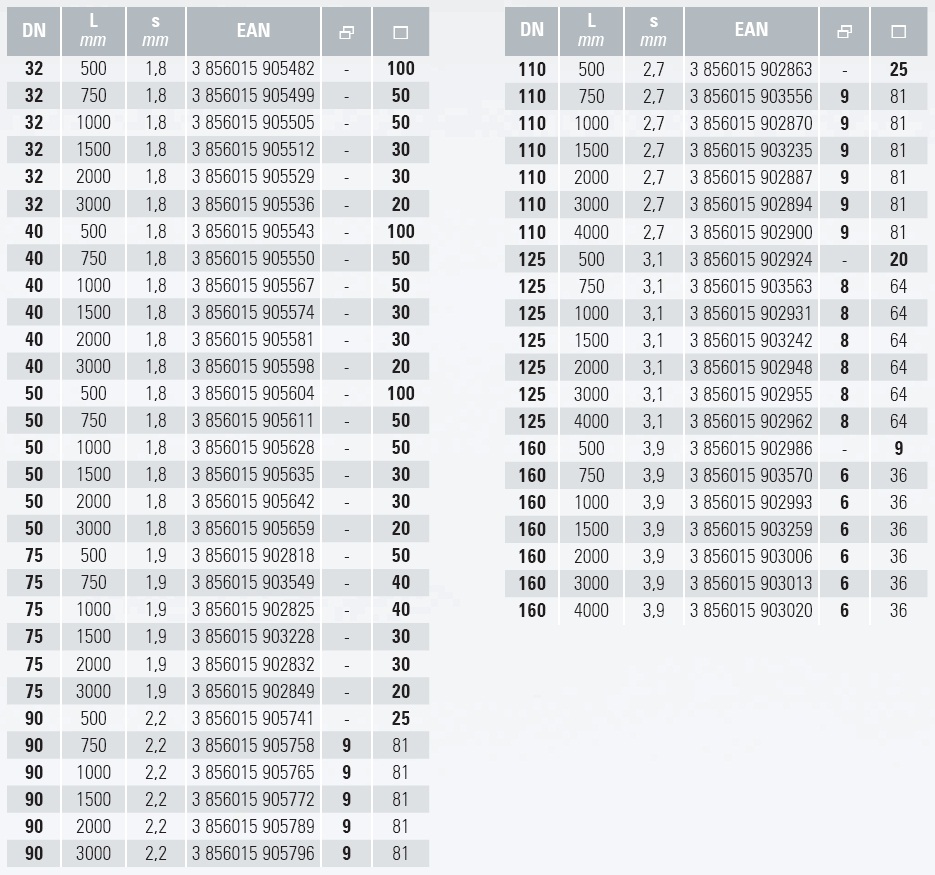

Art. 101 / 2                                                                                                                                 PKDM

THREE LAYER PIPE WITH DOUBLE SOCKET with seal
