Low Noise Drainage Pipes

ALMAPLAST PLUS 3S pipes are produced from polypropylene (PP) polymers with the addition of the mineral filler (MF). The primary application of the pipe is drainage of waste water for residential and industrial use.

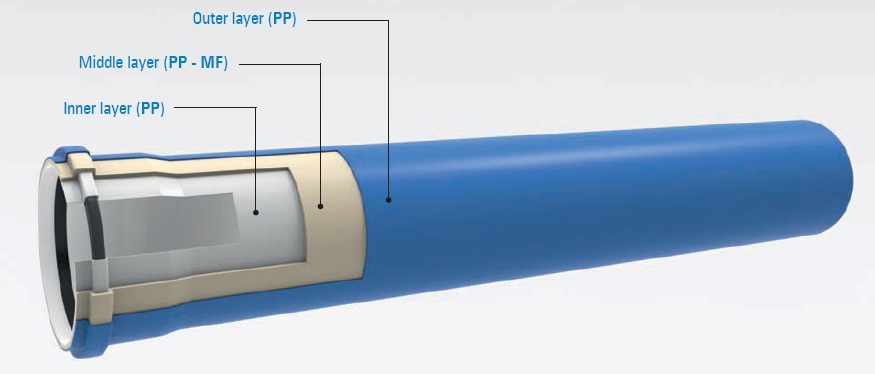

The pipes are manufactured with integrated connection socket, have compact multilayered wall and come with a corresponding connection seal. The pipe wall is made from three layers, the outer and inner layer made of pure PP and middle layer with the addition of the mineral filler. The outer layer of the pipe is blue RAL 5015, and the inner layer is white RAL 9003.

Wall thickness of ALMAPLAST PLUS 3S pipes is higher than the thickness of ALMAPLAST 3S pipes. While discharging media through pipes, ALMAPLAST PLUS 3S emits much less noise than ALMAPLAST 3S pipe, which means that the noise level of ALMAPLAST PLUS 3S pipe is lower than on ALMAPLAST 3S pipes. This is because the thicker middle layer is produced with mineral filler that has the property of good sound absorption, and also provides larger circumferential rigidity of ALMAPLAST 3S pipes.

ALMAPLAST PLUS 3S pipes comply with norm HRN EN 1451-1 which specifies the required mechanical and physical properties of pipes and fittings manufactured from PP in the field of drainage and waste water within the building structure.

Pipes are supplied with associated fittings in the appropriate dimensions.

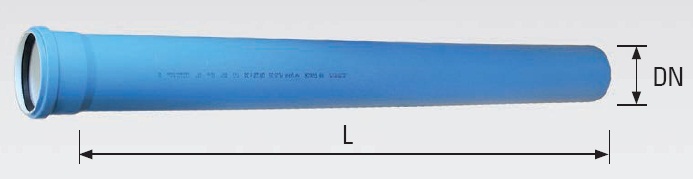

Art. 102 / 1                                                                                                                                 PKEM

LOW NOISE THREE LAYER PIPE WITH SOCKET with seal

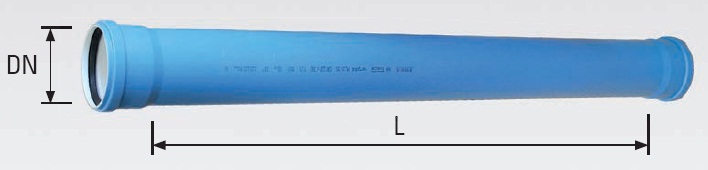

Art. 102 / 2                                                                                                                                 PKDM

LOW NOISE THREE LAYER PIPE WITH DOUBLE SOCKET with seal
